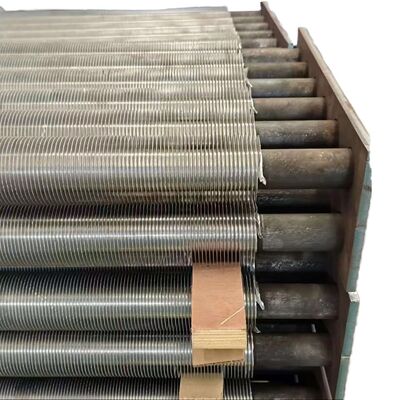

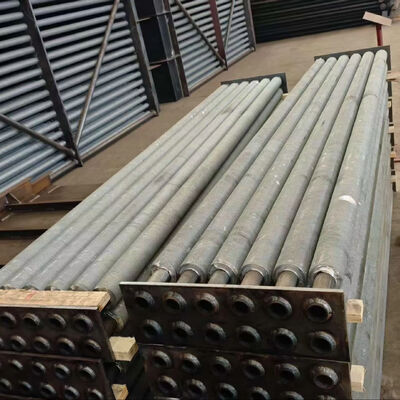

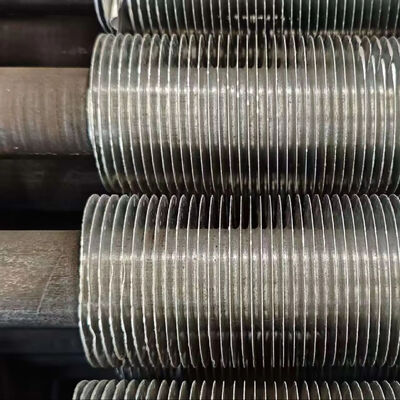

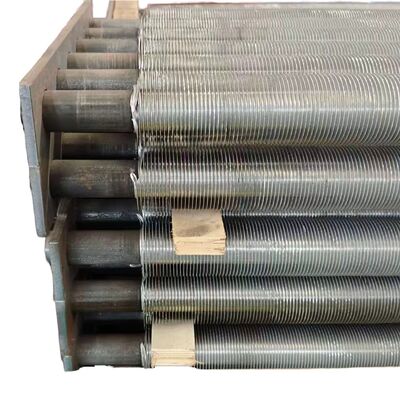

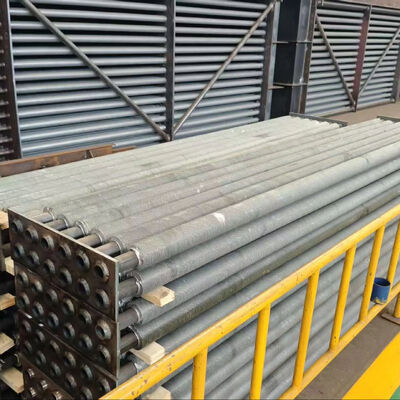

Customized High Frequency Welding Spiral Fin Tube Heat Exchanger
Product Parameters
| Item |
Base Tube O.D (mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness (mm) |
Fin Pitch (mm) |
| Range |
25.4 ~ 1600mm |
2.5 ~ 40 mm |
0.5 ~ 20.0 mm |
0.5 ~ 3.0 mm |
5 ~ 25.4 mm |
| Material |
Carbon Steel, Alloy Steel, Stainless Steel |
| Length |
0 < L < 12000mm |
| Product |
Specifications |
| H-fin Tube |
Base Pipe: Welded or Seamless
Material: Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Application: H economizer, H evaporator, H superheater, H air heater and etc.
|
Product Introduction
Boiler economizers are heat exchange devices with finned tubes that heat liquids, typically water, up to temperatures below the boiling point. We manufacture three types of boiler economizers: bare tube economizer, H finned tube economizer, and spiral finned tube economizer.
The H-finned tube economizer is a high-efficiency heat exchanger consisting of H-finned tubes. Compared with bare tube economizers, H-finned tube economizers significantly enlarge the heat exchange area while reducing the number of tubes required. This design also increases flue gas flow area to reduce flow speed and minimize abrasion.
H-finned tubes can be manufactured as double H finned tubes with high rigidity, making them suitable for long tube row applications. The spiral finned economizer is a newly designed heat transfer equipment that utilizes spiral fin tubes to overcome serious abrasion issues and extend service life.
Function & Benefits
The primary function of the economizer is to "economize" or save on cooling costs. By enabling compressor shutdown while maintaining adequate cooling capacity, significant energy savings can be realized through reduced operational costs.
Boiler Economizer Specifications
| Description |
Boiler economizer |
| Material |
Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard |
ASTM, EN or ISO etc. |
| Dimension |
Customization |
| Weight |
Min: 10 ton, Max: 1000 ton |
| Smelting Process |
EF+LF+VD |
| Process |
Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT standard |
ASTM A388 or EN10228, etc |
Company Profile
Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers, and related heating surface components. We provide clients with integrated services from design and manufacturing to installation and maintenance.
Our Advantages
38 Years Experience
Extensive industry research, development and manufacturing with sufficient production capacity
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure the quality of the entire boiler
- Hydraulic test report to ensure standard working pressure and safety
We maintain a complete quality assurance and control system certified according to International Quality Standards. Our quality assurance system complies faithfully with national regulations, standards, and technical requirements, ensuring 100% control over process and product quality. All products are manufactured in strict accordance with contract requirements, national regulations, and standards through stringent inspection and testing.
Certifications
ISO 9001: 2015
CE Certificate
EN ISO 3834-2
ASME Certificate with "S", "U" and "NB" Stamps
Global Sales & Distribution
Frequently Asked Questions
How long is the warranty period?
We provide 18 months warranty for all spare parts (excluding fragile parts).
How can we guarantee quality?
- All machines comply strictly with ISO quality and CE system requirements
- Each procedure is crafted by professional skilled labor, followed by particular QC
- All product information can be checked in our efficient management system
What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
What kind of service do you provide?
Before sales: Product information, market research forecasting, product customization, product processing, consultation and other services.
After sales:
- Technical training according to customer requirements
- Replacement under warranty
- Maintenance spare parts supply
- Regular call back or customer visits
- Prompt response to complaints or consultation
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
Are you a factory or trading company, where are you located?
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for your visit.
