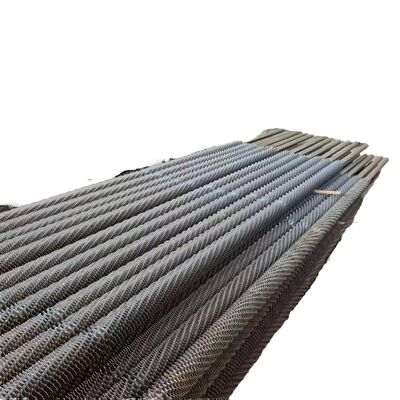

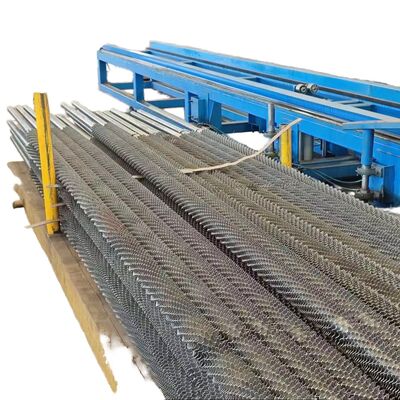

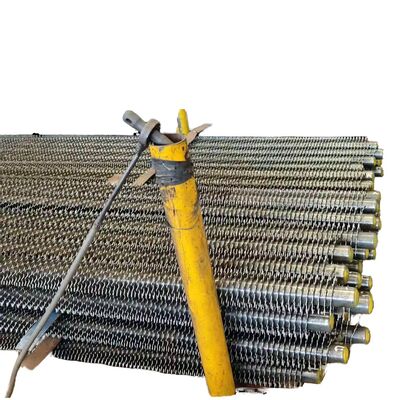

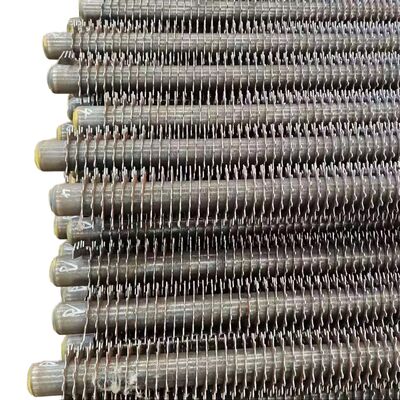

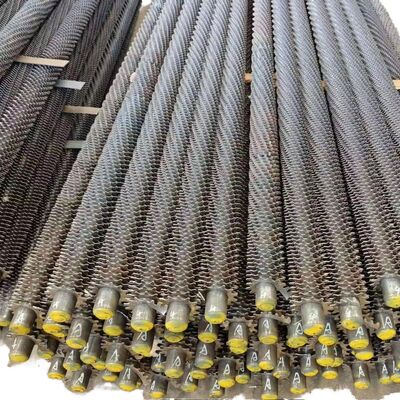

Customized Carbon Steel Boiler Fin Tube with Adjustable Spacing for Heat Exchangers
Product Details
| Base Tube O.D: | 25.4 ~1600mm | Base Tube Thickness: | 2.5 ~40 Mm |
|---|---|---|---|
| Fin Height: | 0.5 ~20.0 Mm | Fin Thickness: | 0.5 ~3.0 Mm |
| Fin Pitch: | 5 ~25.4 Mm | Material: | Carbon Steel, Alloy Steel, Stainless Steel |
| Length: | 0 < L < 12000mm | Base Pipe Type: | Welded Or Seamless |
| Weight Range: | 10 ~1000 Ton | Smelting Process: | EF+LF+VD |
| UT Standard: | ASTM A388 Or EN10228 | Surface Treatment: | Painted |
| Pressure Type: | Low/High Pressure | Heat Treatment: | Normalizing + Tempering |
| Product Type: | H-fin Tube | ||
| Highlight |
Adjustable Spacing Boiler Fin Tube,Carbon Steel Spiral Finned Tube,Customized H-Finned Tube |
||
Product Description
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40 mm | 0.5 ~ 20.0 mm | 0.5 ~ 3.0 mm | 5 ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0 < L < 12000mm | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and etc. |
Boiler economizers are heat exchange devices with finned tubes that heat liquids, typically water, up to but not exceeding the boiling point. We manufacture three types of boiler economizers: bare tube economizer, H finned tube economizer, and spiral finned tube economizer.
H-finned tube economizer is a high-efficiency heat exchanger consisting of H-finned tubes. Compared with bare tube economizers, H-finned tube economizers enlarge the heat exchange area while reducing the number of tubes required. This design increases flue gas flow area, reducing flow speed and abrasion.
H-finned tubes can be manufactured as double H finned tubes with high rigidity to accommodate long tube rows. The spiral finned economizer is a newly designed heat transfer equipment that overcomes serious abrasion and extends service life.
The economizer functions to "economize" or save on cooling costs by enabling compressor shutdown while maintaining adequate cooling, resulting in significant energy savings.
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton, Max: 1000 ton |
| Smelting Process | EF+LF+VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT standard | ASTM A388 or EN10228, etc |
Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers, and related heating surface components. We provide integrated services from design and manufacturing to installation and maintenance.
Extensive experience in research, development, and manufacturing with sufficient production capacity.
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure the quality of the entire boiler
- Hydraulic test report to ensure standard working pressure and safety
Complete quality assurance and control system certified according to International Quality Standards. We establish a quality assurance system in compliance with national regulations, standards, and technical requirements, ensuring 100% process and product quality control through stringent inspection and testing.
Owns verification certificates: ISO 9001: 2015; CE certificate; EN ISO 3834-2; ASME certificate with "S", "U" and "NB" stamps, etc.
We provide 18 months warranty for all spare parts (excluding fragile parts).
- All machines comply with ISO quality and CE system requirements
- Each procedure is crafted by professional skilled labor, followed by particular QC
- All product information can be checked in our efficient management system
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
Before sales: Product information, market research forecasting, product customization, product processing, consultation and other services.
After sales:
- Technical training according to customer requirements
- Replacement under warranty
- Supply of maintenance spare parts
- Regular call back or customer visits
- Prompt response to complaints or consultation
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for your visit.
Product Highlights
Custom carbon steel H-fin tubes for heat exchangers. Adjustable fin spacing, high efficiency, durable construction. Certified (ISO, ASME), seaworthy packing, 1-year warranty. For industrial & power station applications.
