Zhangjiagang Hua Dong Energy Technology Co., Ltd.
Sales & Support:
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | HDT |
| Certification: | ASTM A213 , ASME SA269, EN10215-6 , DIN17456 |
| Model Number: | TP316L / SUS316L / 1.4404 |
| Minimum Order Quantity: | 5T |
|---|---|
| Price: | 800 - 9000 USD / ton |
| Packaging Details: | seaworthy packing for exporting |
| Delivery Time: | 60-75days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | About 10000 ton / month |
| Material: | TP316L / SUS316L / 1.4404 | Finishing: | Annealed & Pickled/Bright Annealed |
|---|---|---|---|
| Application: | Boiler, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry | Shape: | Round Seamless |
| Highlight: | ss seamless pipes,stainless steel boiler tube |
||

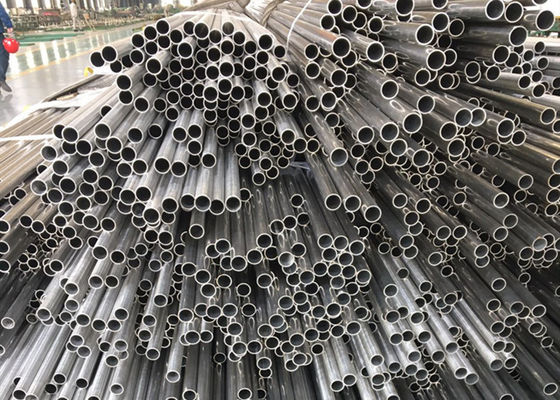

Stainless steel seamless tube ASTM A269 TP316L SUS316L 1.4404, 31.75*1.65*11800MM
The ASTM A269 specification covers nominal-wall-thickness, seamless and welded austenitic steel tubing for general corrosion-resisting and low- or high-temperature service. Upon completion, all material shall:
Mechanical properties of 316 grade stainless steels.
|
Grade
|
Tensile Str
(MPa) min |
Yield Str
0.2% Proof (MPa) min |
Elong
(% in 50mm) min |
Hardness
|
|
|
Rockwell B (HR B) max
|
Brinell (HB) max
|
||||
|
316
|
515
|
205
|
40
|
95
|
217
|
|
316L
|
485
|
170
|
40
|
95
|
217
|
|
316H
|
515
|
205
|
40
|
95
|
217
|
Typical physical properties for 316L grade stainless steels.
|
Grade
|
Density
(kg/m3) |
Elastic Modulus
(GPa) |
Mean Co-eff of Thermal Expansion (m/m/0C)
|
Thermal Conductivity
(W/m.K) |
Specific Heat 0-1000C
(J/kg.K) |
Elec Resistivity
(nΩ.m) |
|||
|
0-1000C
|
0-3150C
|
0-5380C
|
At 1000C
|
At 5000C
|
|||||
|
316/L
|
8000
|
193
|
15.9
|
16.2
|
17.5
|
16.3
|
21.5
|
500 |
740
|
Corrosion Resistance of 316L Stainless Steel Pipes and Tubes
excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 600C. Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 600C.
316L is usually regarded as the standard €œmarine grade stainless steel", but it is not resistant to warm sea water. In many marine environments 316L does exhibit surface corrosion, usually visible as brown staining. This is particularly associated with crevices and rough surface finish.
Heat Treatment of ASTM A269 316L Stainless Steel Seamless Pipes and Tubes
Solution Treatment (Annealing) - Heat to 1010-11200C and cool rapidly. These grades cannot be hardened by thermal treatment.
Delivery: Within 60-75days or asap if we have enough stock

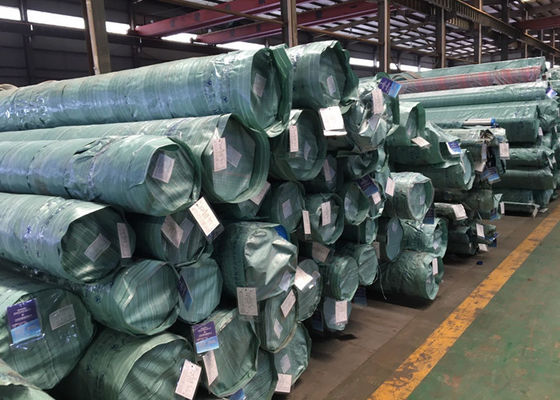

Types of Packaging:
•- Bundles (hexagonal)
•- Wooden Boxes
•- Crates (steel/wooden)
•- Special crates for U-Bend tubes with each radius separated
•- Packaging for SS 316L ASTM A269 Seamless Pipe as per customer's requirements
Special Features:
•- Each bundle covered with plastic for protection against extreme weather.
•- End of SS 316L ASTM A269 Seamless Pipe protected by plastic caps.
•- Bundles strapped with plastic strips.
•- Each radius of U-Bend tube separated by a separator.
•- Packaging list (laminated) placed with box/crate.
Certification
Contact Person: Mrs. Sandy
Tel: 008615151590099
Fax: 86-512-5877-4453
