Place of Origin: | China(Mainland) |
Brand Name: | HDT |
Certification: | ASME, TUV, SGS, ISO9001, Grade A |
Model Number: | TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H |
Minimum Order Quantity: | 5T |
---|---|
Price: | 800 - 9000 USD / ton |
Packaging Details: | seaworthy packing for exporting |
Delivery Time: | 60-75days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | About 10000 ton / month |
Material: | TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H | Finishing: | Annealed & Pickled |
---|---|---|---|
Application: | Boiler, Mining, Gas Pipeline | Shape: | Seamless |
OD: | 6.00mm-850mm | WT: | 0.5mm-68mm |
Highlight: | ss seamless tube,seamless stainless steel tube |

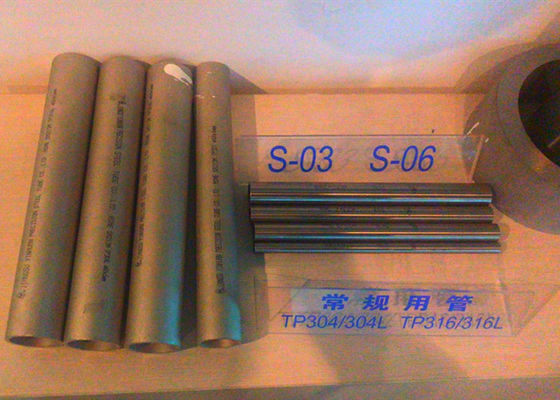

Stainless Steel Seamless pipe,BOILER/HEAT EXCHANGER TUBE,ASTM A213/ A213M, ASME SA213 TP310S,25.4*2.11MM.
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger pipes.
Material Grade:
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, Others:TP405,TP409, TP410, TP430, TP439,... |
Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
Production | Outside Diameter | Wall Thickness |
Boiler Pipe | 6.00mm-850mm | 0.5mm-68mm |
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of pipes:
U-bend or Straight.
Some of the quality tests carried out by us includes:
Corrosion Test | Conducted only when specially requested by the client |
Chemical Analysis | Test done as per required quality standards |
Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
Air Under Pressure Test | To check any evidence of air leakage |
Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
