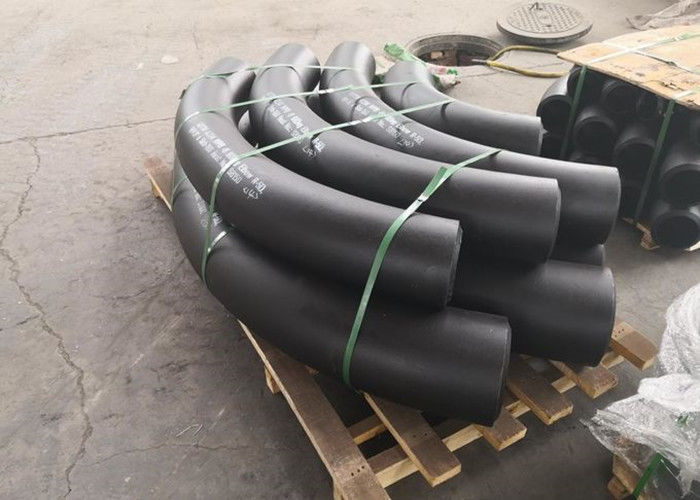

Stainless Steel 45 Degree Elbow Rust Proof Black Oil Surface ASTM A234 ASTM A420
Product Details
| Material: | WP B , WP11, WP22, WP5, WP9, WP91 ,WP6 | Application: | Boiler, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry |
|---|---|---|---|
| Size: | DN8 TO DN 100 | Standard: | ASTM A234. ASTM A420 |
| Highlight |
duplex steel elbow,butt weld elbow |
||
Product Description

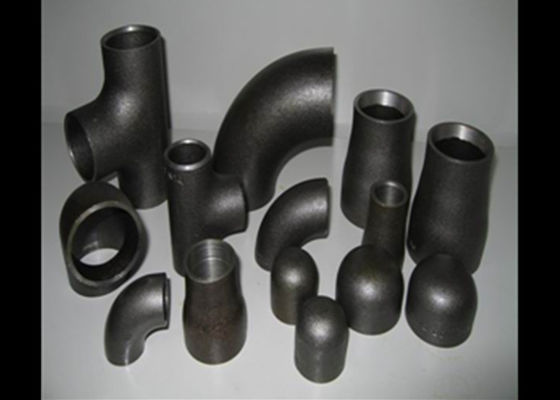

Rust Proof Black Oil Surface Stainless Steel Elbow Tube ASTM A234 ASTM A420
PIPE END CAPS ANSI B 16.9
Pipe caps act as protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc. They are also fitted on water pump lines with the sole purpose of removing air blocks. Pipe caps are highly demanded as an important category of pipe fittings.
|
|
Prosaic Steel & Alloys manufactures a wide range of caps ( pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades. Prosaic Steel & Alloys manufactures & supplies high quality cap (pipe fitting) that can be used for various applications. Our caps(pipefittings) are tested and verified for durability, accuracy and precision.
Prosaic Steel & Alloys manufactures forged & seamless caps(pipefitting) of types including socket weld cap, threaded cap to ANSI B 16.5 from classes 2000 to 9000 and Schedules from 10 to 160 .
Prosaic Steel & Alloys manufacture forged socketweld & threaded caps, seamless cap accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160 .
Prosaic Steel & Alloys also design & manufacture caps (pipe fittings) of special types made according to drawing on request.
Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6,316L, 304L, 321, 321H.
Special alloys: cooper nickel, Ni-based, Cu-based, Co-based, Fe-based
Size: 1/2" - 24"
Manufacturing standard: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, etc.
Surface treatment:Shot blasted, rust-proof black oil
| INCHES | METRIC | ||||||||
| N.B. | O.D. at Bevel | E | Limit W.T. For Length E | E1 | N.B.. | O.D. At Bevel | E | Limit W.T. For Length E | E1 |
| 1 - 2 |
0.84 | 1 | 0.15 | 1 | 15 | 21.34 | 25.4 | 3.73 | 25.4 |
| 3 - 4 |
1.05 | 1 | 0.15 | 1 | 20 | 26.67 | 25.4 | 3.91 | 25.4 |
| 1 | 1.32 | 1 1/2 | 0.18 | 1 1/2 | 25 | 33.4 | 38.1 | 4.55 | 38.1 |
| 1 1/4 | 1.66 | 1 1/2 | 0.19 | 1 1/2 | 32 | 42.16 | 38.1 | 4.85 | 38.1 |
| 1 1/2 | 1.9 | 1 1/2 | 0.2 | 1 1/2 | 40 | 48.26 | 38.1 | 5.08 | 38.1 |
| 2 | 2.38 | 1 1/2 | 0.22 | 1 3/4 | 50 | 60.33 | 38.1 | 5.54 | 44.45 |
| 2 1/2 | 2.88 | 1 1/2 | 0.28 | 2 | 65 | 73.03 | 38.1 | 7.01 | 50.8 |
| 3 | 3.5 | 2 | 0.3 | 2 1/2 | 80 | 88.9 | 50.8 | 7.62 | 63.5 |
| 3 1/2 | 4 | 2 1/2 | 0.32 | 3 | 90 | 101.6 | 63.5 | 8.08 | 76.2 |
| 4 | 4.5 | 2 1/2 | 0.34 | 3 | 100 | 114.3 | 63.5 | 8.56 | 76.2 |
| 5 | 5.56 | 3 | 0.38 | 3 1/2 | 125 | 141.3 | 76.2 | 9.53 | 88.9 |
| 6 | 6.63 | 3 1/2 | 0.43 | 4 | 150 | 168.28 | 88.9 | 10.97 | 101.6 |
| 8 | 8.63 | 4 | 0.5 | 5 | 200 | 219.08 | 101.6 | 12.7 | 127 |
| 10 | 10.75 | 5 | 0.5 | 6 | 250 | 273.05 | 127 | 12.7 | 152.4 |
| 12 | 12.75 | 6 | 0.5 | 7 | 300 | 323.85 | 152.4 | 12.7 | 177.8 |
| 14 | 14 | 6 1/2 | 0.5 | 7 1/2 | 350 | 355.6 | 165.1 | 12.7 | 190.5 |
| 16 | 16 | 7 | 0.5 | 8 | 400 | 406.4 | 177.8 | 12.7 | 203.2 |
| 18 | 18 | 8 | 0.5 | 9 | 450 | 457.2 | 203.2 | 12.7 | 228.6 |
| 20 | 20 | 9 | 0.5 | 10 | 500 | 508 | 228.6 | 12.7 | 254 |
| 22 | 22 | 10 | 0.5 | 10 | 550 | 558.8 | 254 | 12.7 | 254 |
| 24 | 24 | 10 1/2 | 0.5 | 12 | 600 | 609.6 | 266.7 | 12.7 | 304.8 |
| 26 | 26 | 10 1/2 | - | - | 650 | 660.4 | 266.7 | - | - |
| 28 | 28 | 10 1/2 | - | - | 700 | 711.2 | 266.7 | - | - |
| 30 | 30 | 10 1/2 | - | - | 750 | 762 | 266.7 | - | - |
| 32 | 32 | 10 1/2 | - | - | 800 | 812.8 | 266.7 | - | - |
| 34 | 34 | 10 1/2 | - | - | 850 | 863.6 | 266.7 | - | - |
| 36 | 36 | 10 1/2 | - | - | 900 | 914.4 | 266.7 | - | - |
| 38 | 38 | 12 | - | - | 950 | 965.2 | 304.8 | - | - |
| 40 | 40 | 12 | - | - | 1000 | 1016 | 304.8 | - | - |
| 42 | 42 | 12 | - | - | 1050 | 1066.8 | 304.8 | - | - |
| 44 | 44 | 13 1/2 | - | - | 1100 | 1117.6 | 342.9 | - | - |
| 46 | 46 | 13 1/2 | - | - | 1150 | 1168.4 | 342.9 | - | - |
| 48 | 48 | 13 1/2 | - | - | 1200 | 1219.2 | 342.9 | - | |
Certification
