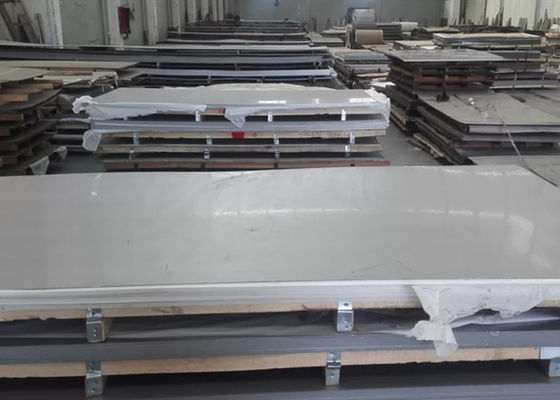

Plate Astm A240 316l Stainless Steel Plate No 1 Finished 2000mm Width
Product Details
| Product: | SS 316L PLATE ASTM A240 316L Stainless Steel Plate NO.1 Finished 2000mm Width | Steel Grade: | 201, 202, 304, 304L, 316L, 309S, 310S, 430, 409L, 410, 444, 2205, 904LASTM/AISI: 201, 202, 301, 301L, 302, 303, 304, 304L, 304N1, 305, 309S, 310S, 316, 316L, 316N, 317, 317L, 321, 904L |
|---|---|---|---|
| Size/thickness: | 3.0 To 100mm | Surface Finish: | NO.1 Finish |
| Width: | 1000mm---2000mm | Length: | 2000mm/2438mm/3000mm/6000mm Or As Required |
| Highlight |
ss 304 sheet,stainless steel hot rolled plate |
||
Product Description
Plate Astm A240 316l Stainless Steel Plate No 1 Finished 2000mm Width
Detailed Product Description
| Material: | Stainless Steel | Shape: | Flat |
|---|---|---|---|
| Thickness: | 1.5-3 Mm Or Customized | Width: | 10mm-2000mm |
| Length: | 2000-12000mm | Finished: | 2B BA NO.1 |
SS 316L PLATE ASTM A240 316L Stainless Steel Plate In ASTM A240, type 316 and 316L is a chromium nickel austenitic steel, Element molybdenum addition can enhances corrosion resistance of stainless steel, which is the main factor that 316/316l is more corrosion resistant than 304/304l. When 316L steel of low carbon content is only a little higher than 316 steel on strength level. So sometimes grade 316l is almost the same as 316 grade. Another difference, 316l can be used for weld treatment as it contains lower carbon.
316/316L steel has outstanding corrosion resistant properties, whether it is atmospheric or oxidizing environment, even for marine atmosphere, it shows excellent corrosion resistance in welded state. Normally 316/316l steel shows no magnetic in annealed condition, cold drawn or cold rolling process may make it with little magnetic, and it can be fixed with further processing.
Applications Of ASTM A240 316/ 316L
316/316L plate is used to manufacture products for applications that are exposed to salt water, acids such as sulfuric acid and chloride, petrochemicals and chemicals and high-heat such as engines and motors.Products include tanks, supports and frames, enclosures and housings, engine, motor and machinery components and parts.
Chemical Composition Of 316/316L Steel Plate
| Chemical Composition of 316/316L steel | ||
|---|---|---|
| Element | 316 | 316L |
| Carbon | 0.08 | 0.030 max |
| Chromium | 16.0-18.0 | 16.0-18.0 |
| Nickel | 10.0-14.0 | 10.0-14.0 |
| Molybdenum | 2.00-3.00 | 2.00-3.00 |
| Manganese | 2.00 | 2.00 |
| Silicon | 0.75 | 0.75 |
| Nitrogen | 0.10 | 0.10 |
| Phosphorus | 0.045 | 0.045 |
| Sulfur | 0.030 | 0.030 |
Mechanical Properties Of 316/316L steel Plate
| Mechanical Property of 316/316l | 316 | 316L |
|---|---|---|
| Yield Strength, min. (ksi) | 30 | 25 |
| Tensile Strength, min. (ksi) | 75 | 70 |
| Elongation, min. (%) | 40 | 40 |
| Hardness, max. (Rb) | 95 | 95 |
Stainless Steel Standards Of 316 / 316L Steel
| Steel Standards of 316/316L | |
|---|---|
| 316 | 316L |
| ASTM A240 | ASTM A240 |
| ASTM A666 | ASTM A666 |
| ASME SA240 | ASME SA240 |
| AMS 5524 | AMS 5507 |
Company Profile
Hua Dong Energy Technology deals with stainless steel welded pipe and tube already more than 10 years, every year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
