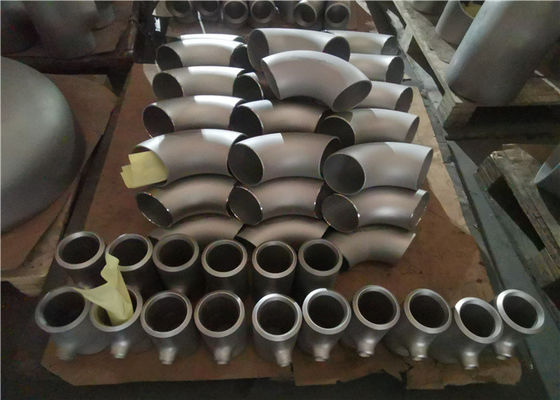

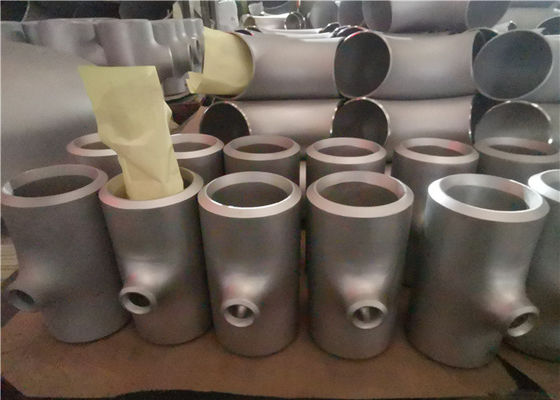

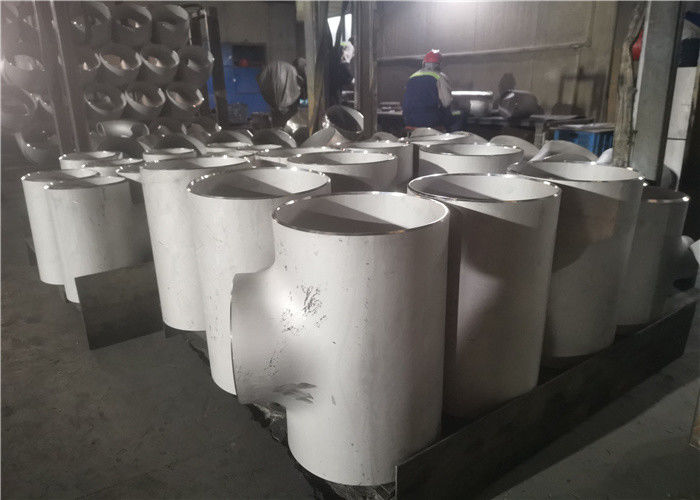

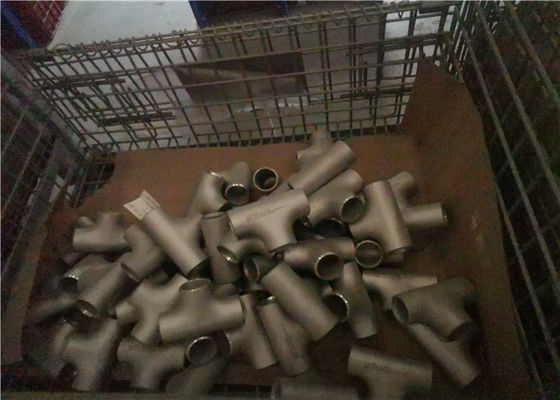

Seamless TP304 Butt Welded 110mm Equal Tee Pipe Fitting Varnished
Product Details
| Product Name: | Stainless Steel Pipe Fitting | Material: | TP304 316 |
|---|---|---|---|
| Type: | Butt Welded | Loading Port: | Shanghai |
| Surface: | Grind Sand | Shape: | Customized |
| Highlight |
Butt Welded equal tee fitting,TP304 equal tee fitting,TP304 110mm equal tee |
||
Product Description
Equal Tee/ Reducing Tee Stainless Steel Seamless Butt Welded Pipe Fitting
| Porduct Name | Pipe tee |
| Size | 1/2"-24" seamless,26“-110”welded |
| Standard | ANSI B16.9,MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc. |
| Wall thickness | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Type | Equal/Straight tee,reduced tee,Y tee,lateral tee,Barred tee,split tee,tee cross |
| End | bevel end/BE/buttweld |
| Surface | nature color, varnished, black painting, anti-rust oil etc. |
| Material | Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH,P295GH,P355GH and etc. |
| Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
| Cr-Mo allo steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc. | |
| Application |
Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust; power plart; ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
| Product name | Standard | Grade | OD | Wall thickness |
| 90 degree Elbow Long Radius | ||||
| 90 degree Elbow Short Radius | 1/2" - 16" | |||
| 45 degree Elbow Long Radius | (seamless) | |||
| 180 degree Elbow Long Radius | ASTM/ASME A/SA403 | WP304/304L | WP-S | SCH10S |
| Concentric Reducer | ASME B16.28 | WP316/316L | (welded) | SCH40S |
| Eccentric Reducer | ASME B16.9 | WP321/321H | WP-W | SCH80S |
| Equal Tee | MSS-SP43 | WP310S | SCH160* | |
| Reducing Tee | EN 10253-4 | WP347/347H | 14" - 24" | SCHXXS* |
| Equal Cross | DIN 2609/2605/2615 | S32205 | (welded) | |
| Reducing Cross | S31803 | WP-WX | ||
| Stub End | ||||
| End Cap |
About US:
Zhangjiagang Hua Dong Energy Technology Co., Ltd.(HDT) is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd., which is founded in 1985s and is one of the most leading boiler and boiler parts manufacturer in China. The company covers an area of 200,000㎡, with more than 400 workers and more than 80 technicians. The annual turnover is around 110 million US dollars. The company is located in port city Zhangjiagang in Jiangsu Province, 1.5 hours to Shanghai Pudong airport and 40min to Wuxi airport.
HDT is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates and pipe fittings. HDT products have been widely applied in industry like petroleum, chemistry, metallurgy, shipbuilding, machinery, power, automobile, aviation, paper, food and pharmacy, etc. The annual production capacity of seamless steel pipe, welded pipe and pipe fittings is 30,000t, 20,000t and 5,000t respectively.
So far, HDT holds the certification of ASME, PED+AD2000, API, ABS, CCS, LR, DNV, GL, BV, KR, GOST and so on. We contribute to provide high-quality and safe products to our customers, and emphasize much on lean manufacturing, so as to make a win-win cooperation with customers and protect our environment.
Product Highlights
Equal Tee/ Reducing Tee Stainless Steel Seamless Butt Welded Pipe Fitting Porduct Name Pipe tee Size 1/2"-24" seamless,26“-110”welded Standard ANSI B16.9,MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc. Wall thickness STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and ...
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge
Heat Exchanger H Type Boiler Parts Tube For Utility Power Station Plant
High Efficient Heat Exchang H Type High Temperature Resistance Boiler Parts For Utility/Power Station Plant Product Introduce H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H
Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler
Energy Saving Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler Product Description H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface. H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer,
