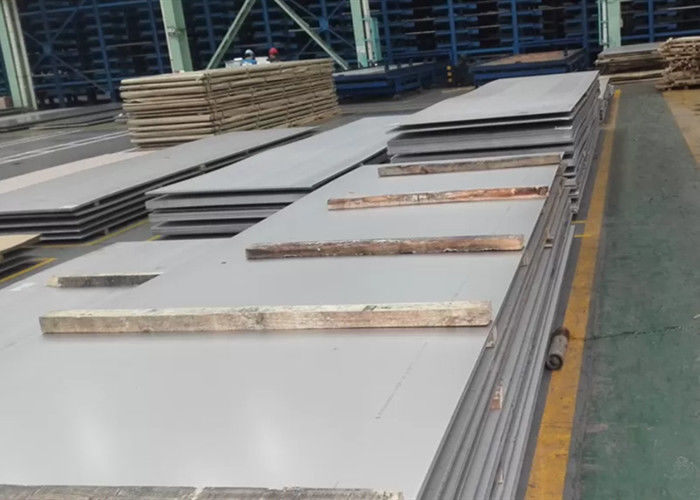

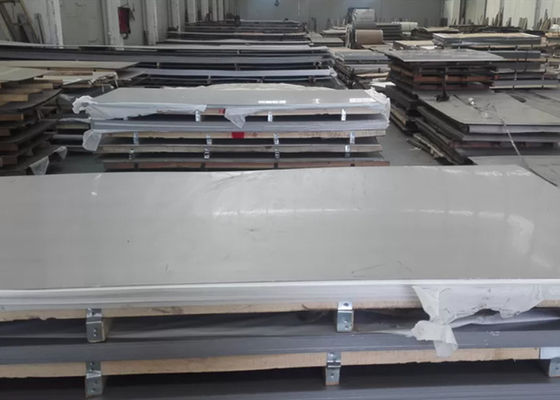

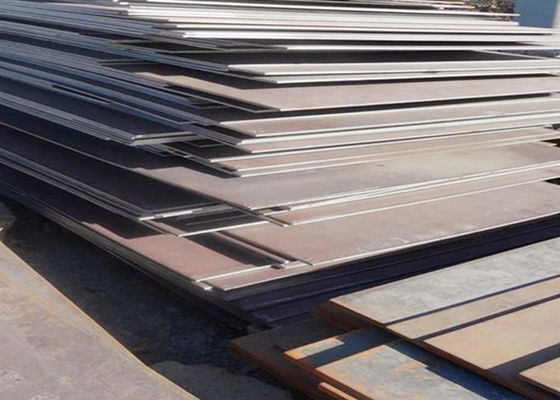

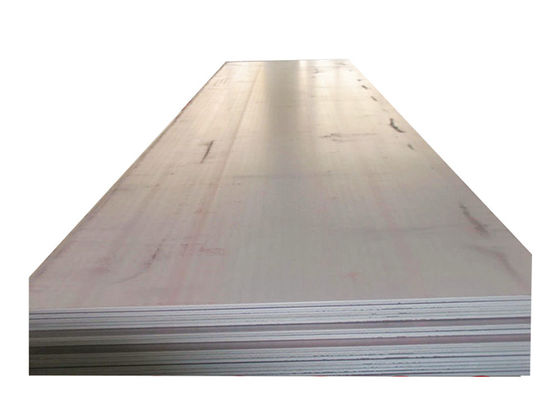

Square Ss 316 Sheet DIN1 4404 Metal Plate Laser Cutting Bending Food Processing
Product Details
| Product: | 316L Stainless Steel Plate DIN1.4404 Metal Plate Laser Cutting And Bending | Steel Grade: | 201, 202, 304, 304L, 316L, 309S, 310S, 430, 409L, 410, 444, 2205, 904LASTM/AISI: 201, 202, 301, 301L, 302, 303, 304, 304L, 304N1, 305, 309S, 310S, 316, 316L, 316N, 317, 317L, 321, 904L |
|---|---|---|---|
| Size/thickness: | 0.5-1.2mm Or Customized,1.5-3 Mm Or Customized | Surface Finish: | NO.1 Finish |
| Width: | 1000mm---2000mm | Length: | 2000-6000mm |
| Highlight |
ss 304 sheet,polished stainless sheet |
||
Product Description
Hua Dong Energy Technology deals with stainless steel welded pipe and tube already more than 10 years, every
year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45
countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical,
Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
316L Stainless Steel Plate DIN1.4404 Metal Plate Laser Cutting and Bending
16 / 316L are austenitic stainless steels that contain molybdenum, which increases their resistance to many chemical corrodents and marine environments. 316L is an extra low carbon version of 316 stainless steel. These materials are more resistant to general corrosion and pitting/crevices than conventional austenitic stainless steels. They also offer higher creep, stress-to-rupture and tensile strength at elevated temperatures, excellent corrosion resistance and strength properties, and they are well suited for fabricated or formed applications.
- AMS 5507
- UNS S31600
- UNS S31603
- ASTM A 167
- ASTM A 240
- ASTM F 138
- ASTM F 899
- PWA-LCS
- GE-S400/1000
- RR SABRe Edition 2
- DFARS Compliant
- SAE AMS 5507
Common Trade Names
- ATI 316L (™ Allegheny Technologies)
- ATI 316 (™ Allegheny Technologies)
Inventory Size Range
- Sheet : 0.018" - 0.130"
- Stainless Steel Round Bar : 0.125" - 3.000"
Please contact us for more details.
The technical data provided is for information only and not for design purposes. It is not warranted or guaranteed.
For a deeper understanding of the difference between 304 and 316, request our white paper on the topic.
| Element | Percent by Weight | |
|---|---|---|
| 316 Stainless | ||
| C | Carbon | 0.08 max |
| Mn | Manganese | 2.00 max |
| Si | Silicon | 0.75 max |
| Cr | Chromium | 16.00 - 18.00 |
| Ni | Nickel | 10.00 - 14.00 |
| Mo | Molybdenum | 2.00 - 3.00 |
| P | Phosphorus | 0.045 max |
| S | Sulfur | 0.030 max |
| N | Nitrogen | 0.10 max |
| Fe | Iron | Bal. |
| Element | Percent by Weight | |
|---|---|---|
| 316L Stainless | ||
| C | Carbon | 0.030 max |
| Mn | Manganese | 2.00 max |
| Si | Silicon | 0.75 max |
| Cr | Chromium | 16.00 - 18.00 |
| Ni | Nickel | 10.00 - 14.00 |
| Mo | Molybdenum | 2.00 - 3.00 |
| P | Phosphorus | 0.045 max |
| S | Sulfur | 0.030 max |
| N | Nitrogen | 0.10 max |
| Fe | Iron | Bal. |
Common Applications of 316/316L Stainless Steel
- Oil & petroleum refining equipment
- Aerospace Structures
- Base plates
- Food processing equipment
- Pulp and paper processing equipment
- Soap and photographic handling equipment
- Textile Industry Equipment
- Architectural
- Pharmaceutical processing equipment
316 / 316L Physical Properties
- Melting Range: 2540-2630°F (1390-1440°C)
- Density: 0.29 lb/in³ (8.027 g/cm³)
- Modulus of Elasticity in Tension: 29 x 106 psi (200 GPa)
- Modulus of Shear: 11.9 x 106 psi (82 Gpa)
| Temperature Range | Mean Coefficient of Thermal Expansion | ||
|---|---|---|---|
| °C | °F | cm/cm/°C | in/in/°F |
| 20 - 100 | 68-212 | 16.5 · 10-6 | 9.2 · 10-6 |
| 20 - 500 | 68-932 | 18.2 · 10-6 | 10.1 · 10-6 |
| 20 - 1000 | 68-1832 | 19.5 · 10-6 | 10.8 · 10-6 |
| Temperature Range | W/m · K | Btu/(hr/ft²/in/°F) | |
|---|---|---|---|
| °C | °F | ||
| 20-100 | 68-212 | 14.6 | 100.8 |
| °C | °F | J/kg °K | Btu/lb/°F |
|---|---|---|---|
| 20 | 68 | 450 | 0.108 |
| 93 | 200 | 450 | 0.116 |
Magnetic Permeability
- H/m Annealed
- 1.02 Max @ 200 H
| Type | Value at 68°F (20°C) | |
|---|---|---|
| Microhm-cm | MIcrohm-in. | |
| 316 | 29.1 | 74.0 |
Mechanical Properties and Yield Strength of 316 / 316L
| Property | Type 316 (S31600) | Type 316L (S31603) | Type 317 (S31700) | Type 317L (S31703) |
|---|---|---|---|---|
| Yield Strength 0.2% Offset psi MPa |
30,000 205 |
25,000 170 |
30,000 205 |
30,000 205 |
| Ultimate Tensile Strength psi MPa |
75,000 515 |
70,000 485 |
75,000 515 |
75,000 515 |
| Percent Elongation in 2 in. or 51mm | 40.0 | 40.0 | 35.0 | 40.0 |
| Hardness, Max. Brinell RB |
217 95 |
217 95 |
217 95 |
217 95 |
Product Highlights
