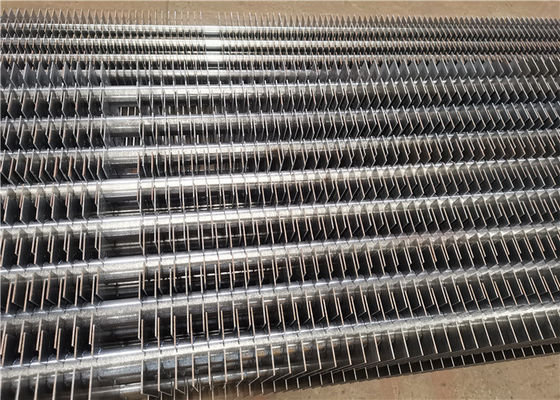

H Type Boiler Serrated Extruded Fin Tube Low Dust Accumulation For Heat Exchanger
Product Details
| Type: | Fin Tube,Heat Exchanger Tube | Application: | Heater Parts,Heat Exchanger |
|---|---|---|---|
| Fin Material: | Carbon Steel,stainless Steel,304L/316LStainless Steel | Packing: | Seaworthy Packing Of Fin Tube |
| Color: | Customized | Package: | Wooden Case With Steel Frame,In Bundles,etc. |
| Highlight |
H Type extruded fin tube,Boiler extruded fin tube,H Type serrated fin tube |
||
Product Description
Alloy / Stainless Steel H Type Boiler Fin Tube Heat Exchanger Using
Boiler fin tube introduction

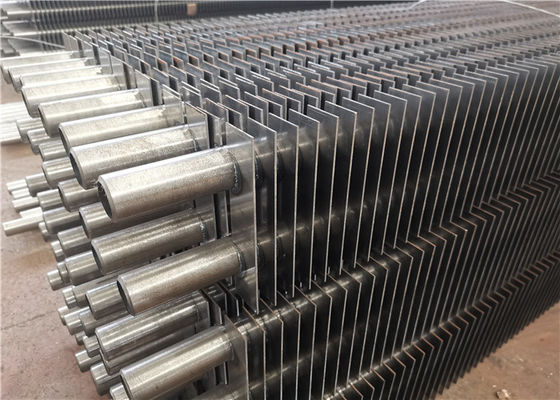

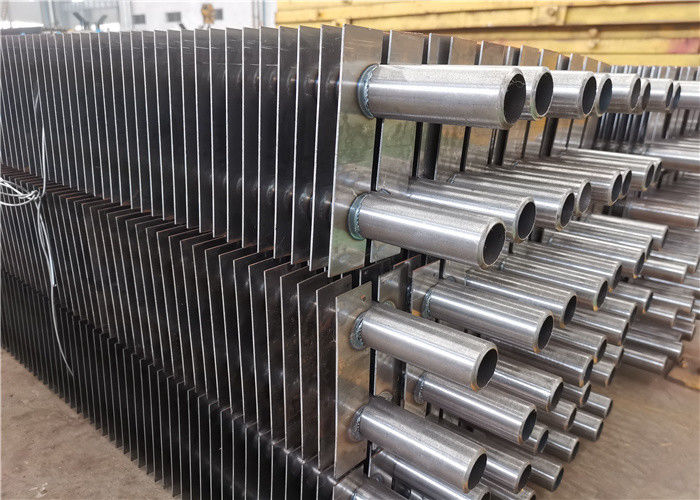

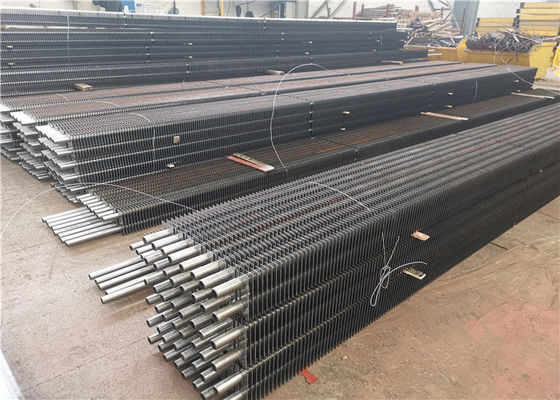

H-shaped finned tubes have a high area expansion rate, less dust accumulation, and high heat transfer efficiency. In the case of equivalent heat transfer capacity, the heat exchanger can occupy the smallest space, and can minimize high-grade materials (ie, pressure tubes) The amount of use, and more use of low-grade materials, (fins). For new engineering projects, the height of the heat exchanger arrangement can be reduced, the overall weight is greatly reduced, the load of the suspension system is reduced, and the overall cost is reduced; for the renovation project, as much heat exchange area as possible can be arranged in a limited space to reduce the exhaust temperature , Improve the efficiency of waste heat recovery or increase the maintenance space for easy maintenance.
The fusion rate between the H-shaped finned tube and the steel tube is as high as 95% or more, the contact thermal resistance is small, and the thermal conductivity is good. Because the airflow between the heat exchange tube bundles is similar to the tandem flow characteristics, there is less dust accumulation on the heat exchange surface during operation, and the fins are more uniformly scoured. The effective utilization rate of the H-shaped fin expansion area is higher than that of the spiral finned tube, and the overall heat transfer efficiency It is about 10% higher than spiral finned tube bundle.
Application:
air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc
Characteristic:1.Anti-corrosion2.Anti-wear3.Lower contact resistance 4.Higher Stability
Specifications of boiler fin tube
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179 | ||
| Fin Material | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel | ||
| Standard | ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 | ||
| Fin depth | 0.5-3mm | ||
| Base pipe O.D | 12.7-18mm | ||
| Fins per inch | 8-20Nos (as customer's request) | ||
| Test Requirement | Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. | ||
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc. | ||
Company Profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
Location:
Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi. The traffic is very convenient.
