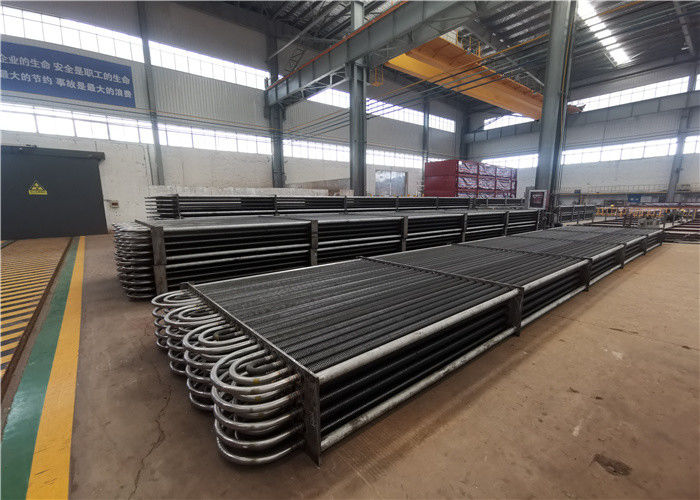

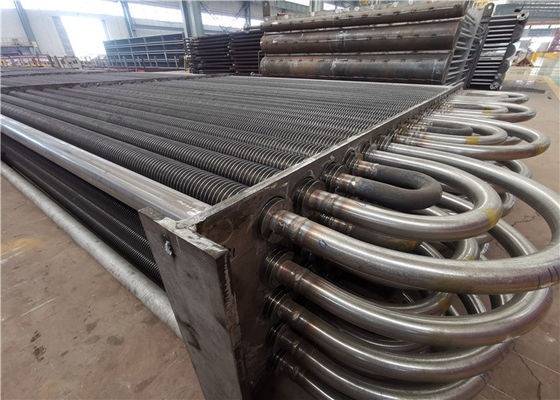

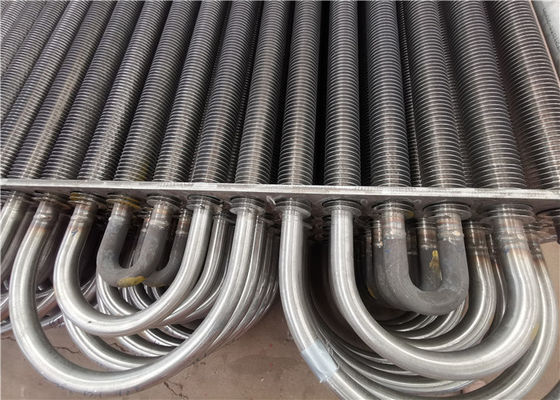

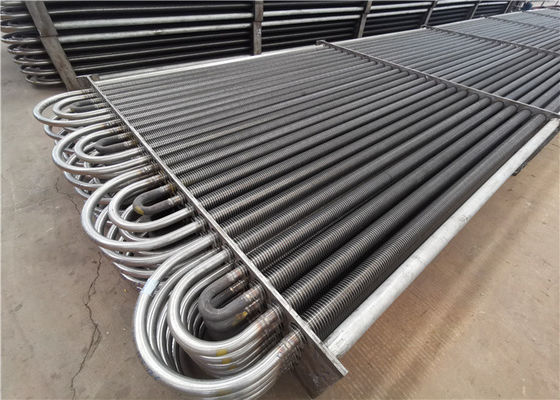

Carbon Neutral 219mm Welding ASME Carbon Steel Boiler Fin Tube For Heat Exchanger
Fin Tube Description
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.it has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Finned tube as the heat transfer element, long-term work in high temperature flue gas condition, such as the boiler heat exchanger with finned tube use conditions, high temperature and high pressure and in a corrosive atmosphere, this requires a performance of the finned tube should have high anticorrosion properties
1) (Anti - corrosion)
2) wear-resisting performance (Anti - wear),
3) low thermal contact resistance (the lower contact hold)
4) high Stability (who Stability)
5) dust proof ability
Boiler Fin Tube is the Energy improving device that helps to reduce the cost of operation by saving the fuel. The Fin Tube in Boiler tends to make the system more energy efficient. In boilers,Fin Tube are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge amount of losses from the boiler if any heat recovery devices are not installed after it. Boiler Economizer that suit your boiler system and will increase its overall efficiency from 3% – 5%. Increase in boiler efficiency will save a lot of your operating cost and eventually will prolong the life of your boiler system.
Classification
|
Product Name
|
Fin Tube for Heat Exchanger/ Cooler
|
|
Bare Tube Material
|
Copper, Alloy, Carbon Steel, Stainless Steel, Nickel Alloy, as per requirement.
|
|
Bare Tube Outer Diameter
|
16-219mm
|
|
Fin Material
|
Alloy, Carbon Steel, Stainless Steel, Aluminium
|
|
Fin Pitch
|
3-25mm
|
|
Fin Height:
|
5-30mm
|
|
Fin Thickness
|
0.8-3mm
|
|
Delivery time
|
30 days upon the receipt of advance payment
|
|
Delivery term
|
FOB, CFR, CIF, FCA
|
|
Grade
|
Stainless Steel: 304, 304H, 316L, 316Ti, 321H, 317L, 310S, 309S, 904L, S31254, 347H, 347HFG, ,TP410, TP430, TP409, TP444
Duplex Steel: S31803, S32205, S32750, S32760
Nickel Alloy: Monel: UNS N04400, N05500
Inconel: UNS N06600, N06601, N06625, N07718
Incoloy: UNS N08800/8810/8811, NO8825, N08926
Hastelloy: UNS N10276, N06022, N010675, N010665
|
Specifications
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
Company Profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
Location:
Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi. The traffic is very convenient.
