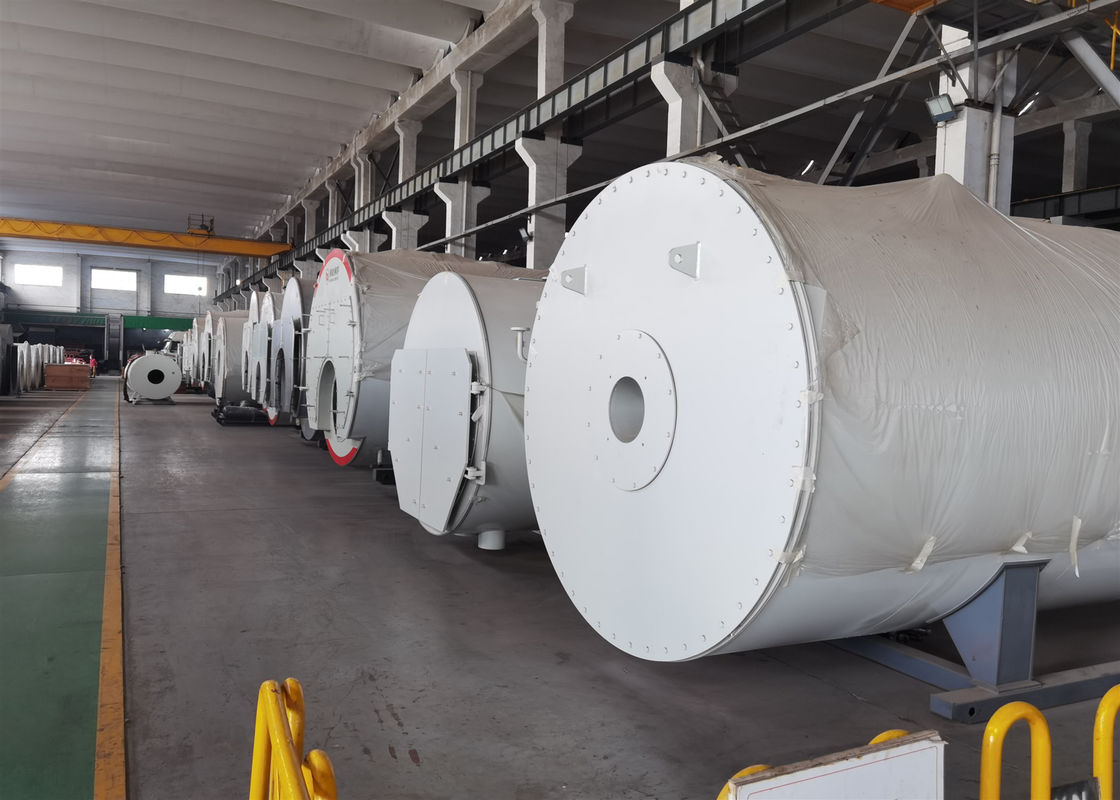

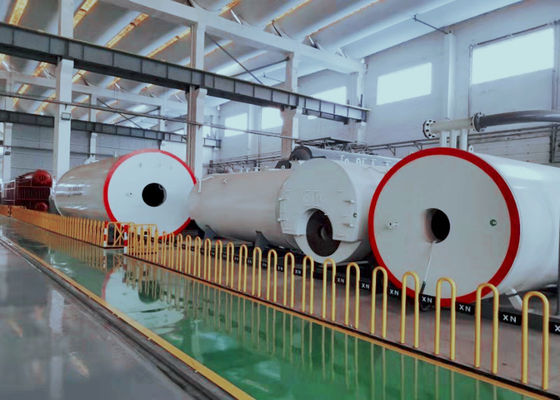

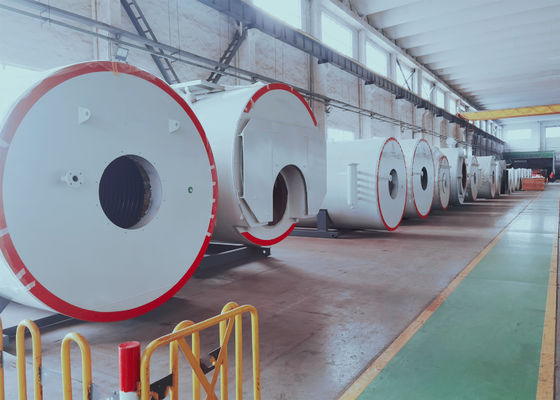

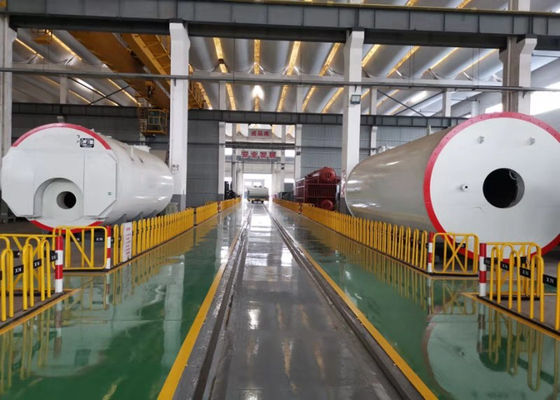

1.1mpa Horizontal Propane Natural Gas Fired Combination Boiler
Product Details
| Product Name: | Gas/Oil-Fired Organic Heat Carrier Boiler | Material Of Tubes Inside: | 20 GB3087 |
|---|---|---|---|
| Application: | Petrochemical, Chemical, Printing, Rubber, Textile | Keywords: | Organic Heat Carrier Boiler |
| Highlight |
Horizontal natural gas fired boiler,Petrochemical propane fired boiler,1.1mpa gas fired combination boiler |
||
Product Description
Horizontal Gas-fired or Oil-fired Organic Heat Carrier Boiler in GB/ASME Standard
Organic heat carrier boiler, also known as heat transfer oil boiler, refers to a new type of heat energy conversion equipment with high-temperature heat transfer oil (also known as heat medium and heat carrier), which has low-pressure and high-temperature working characteristics.
The oil (gas) organic heat carrier boiler is an assembled forced circulation vertical oil (gas) boiler. The heating surface of this series of boilers has a compact structure. The heating surface is composed of inner and outer closely arranged discs. The inner coil tube is a radiant heating surface, and the outer surface of the outer coil tube and the inner coil tube forms a convective heating surface. The boiler is composed of upper body and lower combustion chamber, which is combined on site. After the combustion is fully burned in the combustion chamber and most of the heat is absorbed by the radiant heating surface, the high-temperature flue gas enters the convective heating surface for heat exchange. After leaving the boiler, the air required for boiler combustion is heated in the air preheater, and then the flue gas is sent to the chimney by the induced draft fan through the dust collector and discharged into the atmosphere.
Prodcut Range:
Rated thermal power: 0.7MW - 29MW (60xl04Cal/hr - 2500xl04Cal/hr)
Design pressure: 0.6MPa - 1.6MPa
Specific parameters are shown in the table below.
Some Models Specification:
| Model | YYL(W)-350Y,Q | YYL(W)-600Y,Q | YYL(W)-700Y,Q | YYL(W)-900Y,Q | YYL(W)-1200Y,Q | YYL(W)-1500Y,Q | YYL(W)-1800Y,Q | |
| Rate power(kW) | 350 | 600 | 700 | 900 | 1200 | 1500 | 1800 | |
| Heating capacityx10000(kCal/h) | 30 | 50 | 60 | 75 | 100 | 130 | 150 | |
| Fuel thermal efficiency | ≧90 | ≧90 | ≧90 | ≧90 | ≧90 | ≧90 | ≧90 | |
| Gas thermal efficiency | ≧92 | ≧92 | ≧92 | ≧92 | ≧92 | ≧92 | ≧92 | |
| Design pressure(Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Max. working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| Medium circulation(m3/h) | 40 | 60 | 60 | 100 | 100 | 100 | 100 | |
| Medium capacity in furnace(m3) | 0.24 | 0.7 | 0.7 | 0.7 | 0.8 | 0.95 | 2.1 | |
| Supervisor diameter(DN) | 80 | 100 | 100 | 125 | 125 | 125 | 150 | |
| Installed capacity(kW) | 12 | 22 | 23 | 30 | 40 | 42 | 57 | |
| Applicable fuel | oil,gas | |||||||
| Fuel consumption Kg/hl(light oil)/Nm3/h(natural gas) | 32.6/38.5 | 56/66 | 65.3/77 | 84/99 | 112/132 | 140/165 | 168/198 | |
| Size longxwidexhigh(m) | Vertical boiler | 1.97x1.76x3.1 | 1.97x1.76x3.2 | 1.97x1.76x3.2 | 3.5x1.76x3.2 | 4.64x2.9x2.125 | 3.11x2.17x5.27 | 5.7x2.55x2.8 |
| Horizontal boiler | 2.3x1.65x1.5 | 3.15x1.95x1.84x3.15x1.95x1.84 | 3.6x2.1x2 | 4.05x2.13x2.07 | 4.4x2.15x2.13 | 4.94x2.2x2.8 | ||
