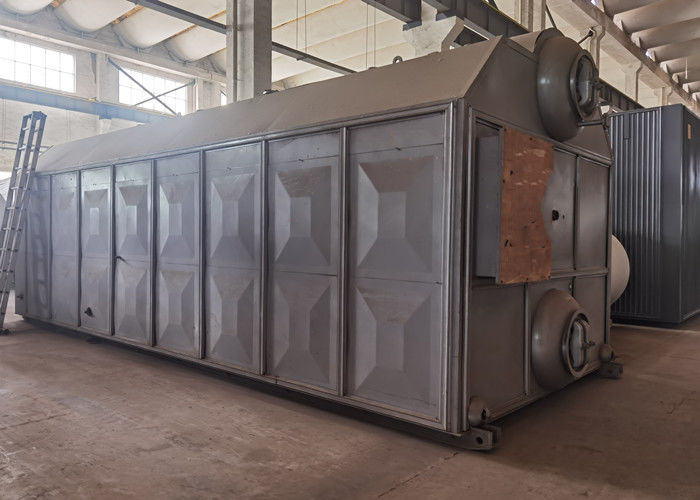

0.4MPA Low Pressure Paper Industries Hot Oil Furnace
Product Details
| Style: | Horizontal | Usage: | Industrial |
|---|---|---|---|
| Condition: | New | Key Word: | Organic Heat Carrier Boiler |
| Fuel: | Gas-fired | Pressure: | Low Pressure |
| Highlight |
Low pressure hot oil furnace,0.4MPA oil fired hot air furnace,Paper Industries hot oil furnace |
||
Product Description
Coal Biomass Fuel Wood Pellet Fired Hot Oil Furnace Boiler Supplier for Paper Industries
Product Information
YLW series organic heat carrier furnace is an assembled forced circulation chain grate boiler. The front of the boiler body is the radiant heating surface of the furnace, which is composed of close-packed double-sided coils; the rear is the convection scouring heating surface, which is composed of serpentine tube bundles. The boiler is composed of an upper body and a lower chain grate, combined on site. The air preheating is arranged behind the boiler. The high-temperature flue gas generated by combustion is absorbed part of the heat in the furnace, and enters the convection heating surface through the turning flue chamber to exchange heat. After exiting the boiler, the air required for combustion is heated in the air preheater, and then the flue gas is removed by the induced draft fan through the dust collector. The gas is sent to the chimney and discharged into the atmosphere. Uses: It can be used as a high-temperature heat source at various temperatures below 350℃, and is widely used in various industries that require high-temperature heating or drying; high temperature and low pressure; accurate temperature control and high heat utilization efficiency. And optional steam generator can produce saturated steam below 0.6MPa for users to use. ◆Product use: It can be used as a high-temperature heat source at various temperatures below 350°C, and is widely used in various industries that require high-temperature heating or drying; high temperature, low pressure; accurate temperature control, high thermal energy utilization. And optional steam generator can produce saturated steam below 0.6MPa for users to use.
Core Technology
1. OIl cover fire structure with three pass.
2. Wet back structure.
3. Compact coil tube.
4. Over oil temperature/over smoke temperature/low flow alarm.
5. Design with air preheater or heat recovery boiler.
6. Front and rear big open door design.
Product Advantage
1. Three Coil Pipes
2. Wet Back Structure
3. External oil collection box
4. Easy to Disassemble Door
Technical Parameter
Product Highlights
