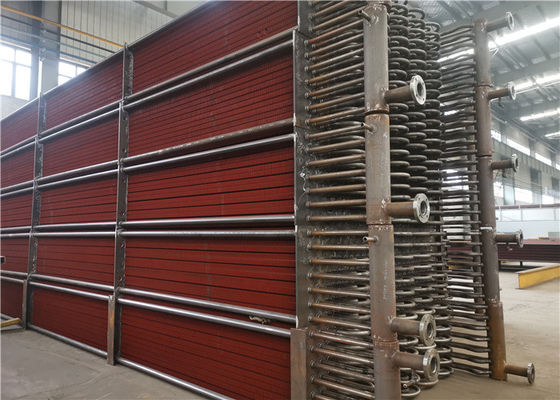

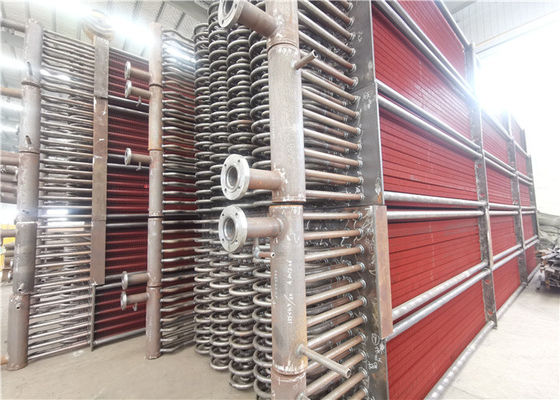

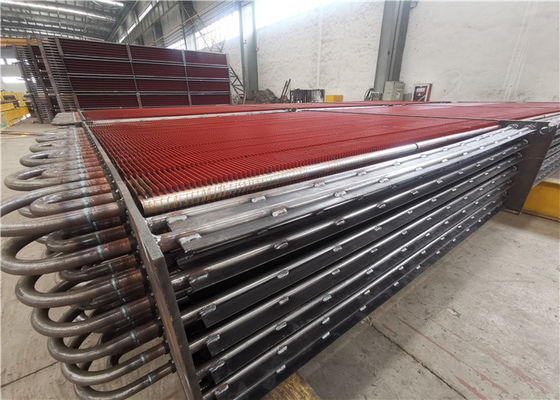

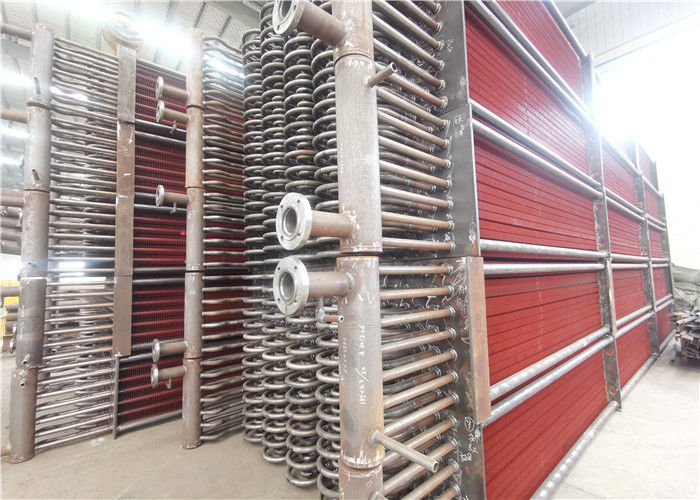

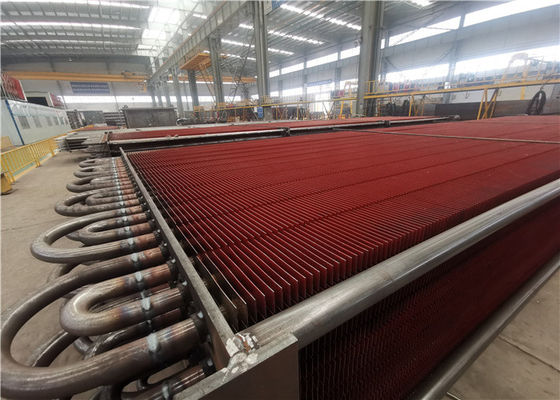

Air Cooler Extruded Bimetal A192 Seamless Boiler Finned Tubes Carbon Steel
Product Introduction
ADVANTAGES
★ One-stop manufacturer shop from core tube supply to fin tube machines;
★ ISO 9001:2008 certified company;
★ Experienced and dedicated management ;
★ Quick response, competitive price, highest quality and shortest schedule;
★ Tube stock availability for general grades of carbon steel and stainless steel;
★ Technical support services for fin tube machines and replacement accessories;
FINNED TUBES PRODUCTS & SERVICES AVAILABLE I. Mechanical-forming thermal-transfer tubes
▲ DR type -Extruded high fin tube (Solid and Serrated fins);
▲ L type-wrap-on spiral fin tube;
▲ LL type -Overlapped footed spiral fin tube;
▲ KL & KLM type-wrap-on knurled footed fin tube;
▲ G base type-Embedded fluted fin tube;
▲ LF- integral low fin tube (knurled option);
▲ I type-Crimped spiral fin tubes; ▲ Corrugated tube, spiral tube, helical slot tube;
2.Welding-forming thermal-transfer tubes
▲HFW type -ERW High frequency resistance welding fin tube(Solid & Serrated Fins);
▲H/HH type -DC welding square or rectangular fin tube;
▲Studs type -ERW studded tube/Pipe;
▲Longitudinal welding fin tube (Type: standard ,perforated, cut & twist);
▲Single Row Flat Finned Tube & Elliptical Finned Tubes;
3.Others service on request
▲Elbows, Bends, U-tube, Tube Swaging;
▲Tube Support/Spacer Box Mat.:SS, Alu. ,Galvanized/Zinc;
▲X-Ray for butt welding; ▲Turbulators;
|
|
Copper
|
|
|
Copper
|
|
|
No Limit
|
|
|
Copper finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.
|
Finned Tubes manufacturing process
|
Pipe line——compressing or rolling——strip peeling——washing——pressure test——blast blowing——packaging.
The cold machining process of fins provides excellent mechanical resistance , fins are strong and have strong resistance to atmospheric corrosion, etc. The pressure required to extrude the fin from the aluminum sleeve creates an excellent “pressure bond” between the two materials. In addition, the aluminum finned material completely surrounds the metal of the tube, so there is no risk of electrical corrosion at the fin root (between the tube and the fin). All of these advantages ensure the most stable performance over time of all other fin types.
|
|
|
Copper finned tubes products are widely used in petrochemical, power plant and power plant renovation, air conditioning and refrigeration, boilers, finned tube economizers and air preheaters.
|
Make the craft:
steel tube polishing-tooth punching on steel strip-Solid rolling on steel trip-High frequency welding-Hydrostatic pressure test, chamfering, polishing-Quality inspection -Packaging
Produce method:extruded & serrated
Application:
air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc
Characteristic:1.Anti-corrosion2.Anti-wear3.Lower contact resistance 4.Higher Stability
Specifications
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Base Tube Material |
Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179 |
| Fin Material |
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel |
| Standard |
ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 |
| Fin depth |
0.5-3mm |
| Base pipe O.D |
12.7-18mm |
| Fins per inch |
8-20Nos (as customer's request) |
| Test Requirement |
Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. |
| Application |
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc. |
